Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

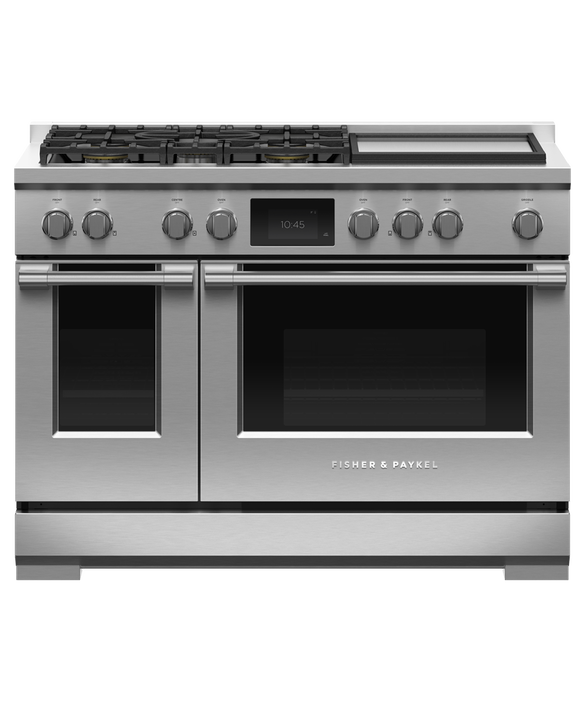

RDV3-485GD-N
48" Series 9
Professional Dual Fuel 5 Burner with Griddle Self-Cleaning Range
Natural Gas
- Professional
- Smart
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.
Receive up to 15% Rebate
Offer ends 31 December 2025. *T&Cs apply.
Purchase qualifying Fisher & Paykel appliances from an authorized retailer in a single transaction between October 1, 2024 and December 31, 2025 and receive up to 15% rebate by way of a Prepaid Mastercard® and 5 year warranty available on qualifying purchases*. Claim by December 31, 2026.
Stainless Steel,
Natural gas
- Finish
- Stainless Steel
- Fuel Type
- Natural gas
starting from
$16,599.00
48" Series 9
Professional Dual Fuel 5 Burner with Griddle Self-Cleaning Range
Natural Gas
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- Gas cooktop with griddle and a top burner heat up to 23,500 BTU, for seriously fast boiling
- 6.9 cu ft total oven capacity across two oven cavities
- Ensure perfect results with the food probe, included
Height
3534 - 3634 "
Width
4778 "
Depth
2918 "
PERFECT RESULTS
Cook With Confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
PERFECT RESULTS

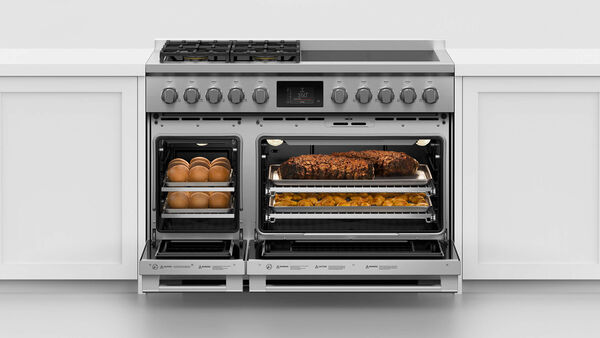

Generous Capacity
Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
PERFECT RESULTS
Cooking Flexibility
No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
PERFECT RESULTS
Cooktop Power
Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
BUILT TO LAST
Design Quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
BEAUTIFUL TO USE

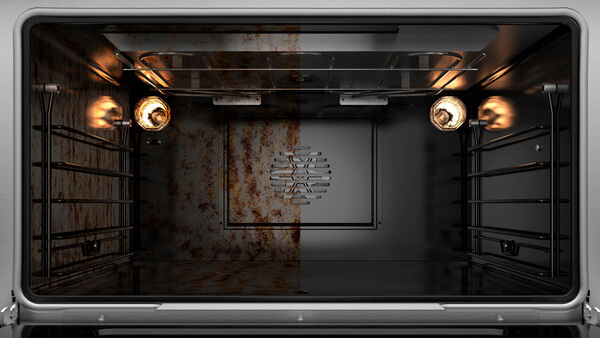

Easy To Clean
The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.
Specifications
- Height
- 3534 - 3634 "
- Width
- 4778 "
- Depth
- 2918 "
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Adjustable feet covers | |
| Branded coin end cap |
Burner ratings
| Burner ratings Attributes | Value |
|---|---|
| Maximum burner power | 23500 BTU |
| Power back centre | 23500BTU |
| Power back left | 18500BTU |
| Power back right | 18500BTU |
| Power front left | 18500BTU |
| Power front right | 18500BTU |
| Power griddle | 24000BTU |
| Total cooktop power | 121500 BTU |
Capacity
| Capacity Attributes | Value |
|---|---|
| Shelf positions (main oven) | 5 |
| Shelf positions (second oven) | 5 |
| Total capacity (main oven) | 4.8cu ft |
| Total capacity second oven | 2.1cu ft |
| Usable capacity (main oven) | 3.8cu ft |
Cleaning
| Cleaning Attributes | Value |
|---|---|
| Easy clean porcelain basepan | |
| Pyrolytic self-clean |
Controls
| Controls Attributes | Value |
|---|---|
| Dial with illuminated halo | |
| Dual control oven dials | |
| Electric circuit | 4 wire |
| High resolution display | |
| Metal illuminated dials | |
| Multi-language interface | |
| Precise cooking with food probe | |
| Recipe and food based functions | |
| Sabbath mode | |
| Smart Appliance | |
| Tilting touch screen interface | |
| Wi-Fi connectivity |
Gas Requirements
| Gas Requirements Attributes | Value |
|---|---|
| Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
| Supply Pressure (natural gas) | 6" to 9" W.C |
Oven features
| Oven features Attributes | Value |
|---|---|
| Auto re-ignition system | |
| Concealed element | |
| Electronic oven control | |
| Full extension telescopic sliding shelves | |
| Titanium coated, illuminated metal dials |
Oven functions
| Oven functions Attributes | Value |
|---|---|
| Air fry | |
| Bake | |
| Classic bake | |
| Clean | |
| Convection bake | |
| Convection broil | |
| Maxi Broil | |
| Number of functions | 15 |
| Pastry bake | |
| Pizza bake | |
| Rapid proof | |
| Roast | |
| Slow cook | |
| True convection | |
| Warm |
Oven performance
| Oven performance Attributes | Value |
|---|---|
| Bake power | 4600 |
| Broil | 3600W |
| Main oven - True convection power | 2500W |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Connection | 4-prong grounding type [NEMA 14-50 plug] |
| Power supply | 120 / 240 V, 60 Hz |
| Service | 50 A |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 29 18" |
| Height | 35 34 - 36 34" |
| Width | 47 78" |
Rangetop features
| Rangetop features Attributes | Value |
|---|---|
| Sealed range top | |
| Vent trim included |
Recommended Back Guards Ventilation
| Recommended Back Guards Ventilation Attributes | Value |
|---|---|
| Combustible situation | BGRV3-3048H |
| Non combustible situation | BGRV2-3048 / BGRV2-1248 |
| Recommended hood | HCB48-12_N (48"" Professional Range Hood, Dual Blower) |
Safety
| Safety Attributes | Value |
|---|---|
| ADA compliant |
Secondary oven features
| Secondary oven features Attributes | Value |
|---|---|
| 3/4 Extension racks | 2 |
| Concealed element | |
| Electronic oven control | |
| Food probe | |
| Internal light |
Secondary oven functions
| Secondary oven functions Attributes | Value |
|---|---|
| Air fry | |
| Bake | |
| Classic bake | |
| Convection bake | |
| Convection broil | |
| Maxi broil | |
| Number of secondary oven functions | 11 |
| Pastry bake | |
| Pizza bake | |
| Rapid proof | |
| Roast | |
| Warm |
